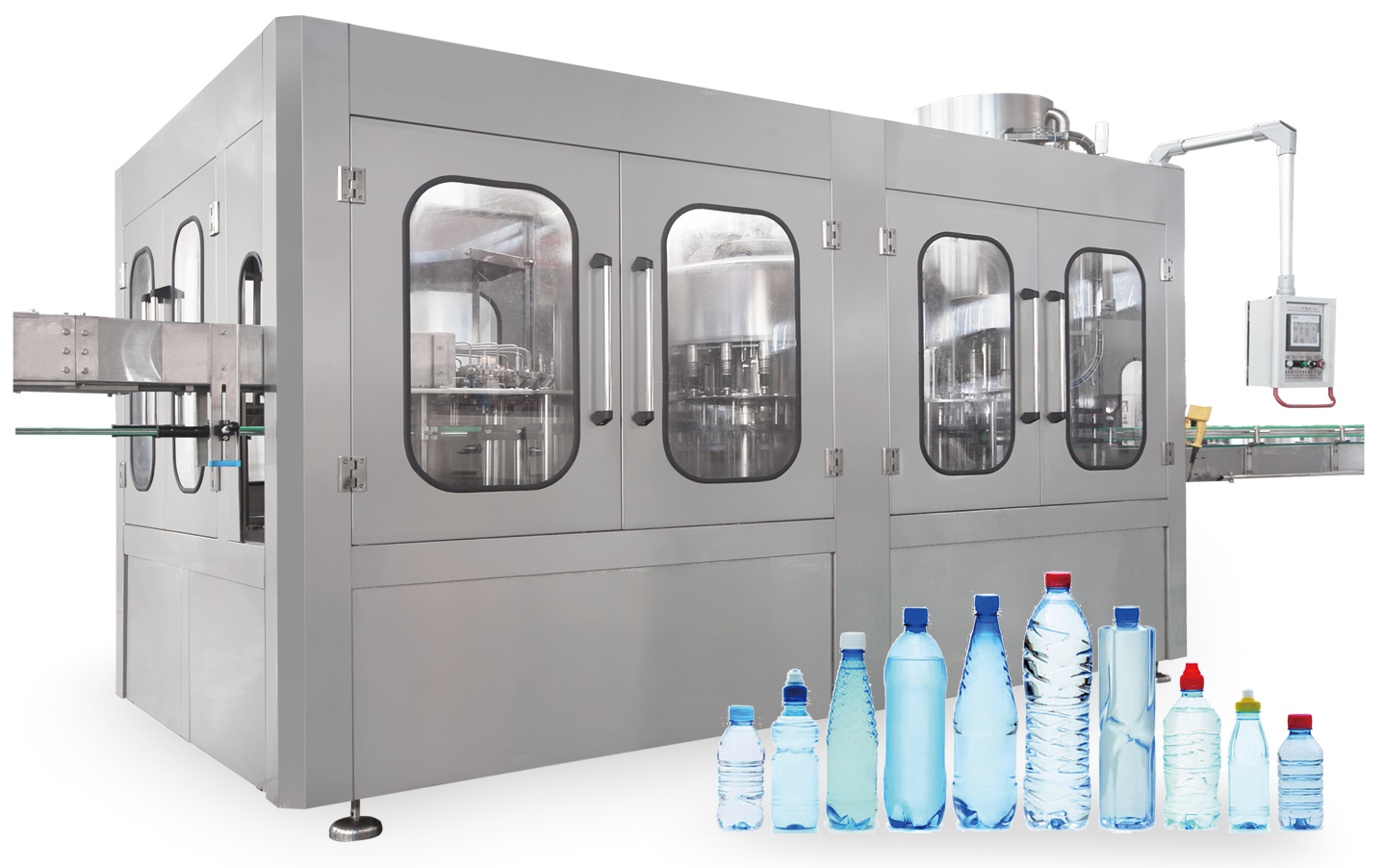

PET Bottle Filling Production Line For Water
PET Bottle Filling Production Line For Water
  • PET bottle water filling production line suitable for pure water, mineral water and other pure water beverages in PET bottles.
  • Output 8,000-42,000 BPH
Contact Us View solutions

PET Bottle Water Filling Production Line Details

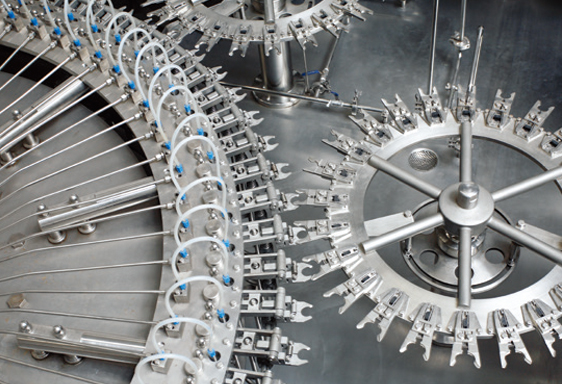

Washing Part

  • Into bottle way is air conveyor direct connection with Bottle dial
  • All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
  • 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
  • 304/316 stainless steel washing pump make the machine more durable.

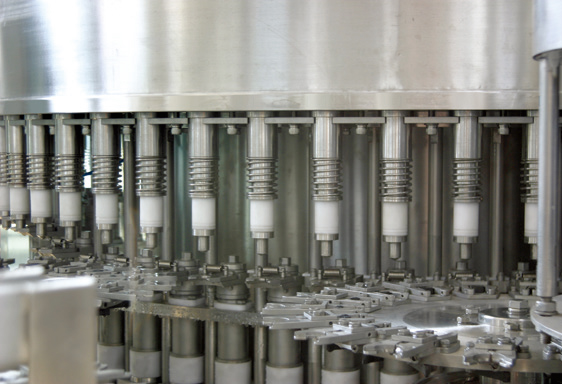

Filling Part

  • 304/316 Stainless steel high precision filling nozzle.
  • High speed and precision filling technology, liquid level precision ≤±2mm.
  • All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean.
  • 304/316 stainless steel filling pump.
  • Efficient spray nozzle rinse thoroughly and save water for flushing.
  • Circling liquid tank, the liquid level is controlled by floating ball.

Capping Part

  • Adopted in constant magnetic torque capping technology. capping effect is stable and reliable.
  • All 304/316 stainless steel construction.
  • No bottle no capping.
  • Automatic stop when lack of bottle.
  • High speed and high precision capping technology and ensure capping inferior ≤0.2%.
  • Capping air tightness ≥ 99.99%.

PET Bottle Water Filling Production Line Parameter

Modle Washing Heads Fillinf Heads CapPing Heads Capacity Dimension Power
GXGF14/12/5 14 12 5 3000-5000BPH 2000×1500×2300 3Kw
GXGF18/18/6 18 18 6 5000-8000BPH 2450×1500×2300 3Kw
GXGF24/24/8 24 24 8 8000-12000BPH 2800×2200×2400 4Kw
GXGF32/32/10 32 32 10 12000-16000BPH 4000×23000×2300 4.8Kw
GXGF40/40/12 40 40 12 16000-24000BPH 4550×2150×2300 5.5Kw
GXGF50/50/15 50 50 15 24000-32000BPH 4720×3210×2400 7.5Kw
GXGF60/60/15 60 60 15 32000-40000BPH 4850×3600×2400 9.6Kw
GXGF72/72/16 72 72 16 40000-48000BPH 5200×3600×2450 9.6Kw
GXGF80/80/18 80 80 18 48000-55000BPH 6500×5000×2450 10.5Kw

Product Images

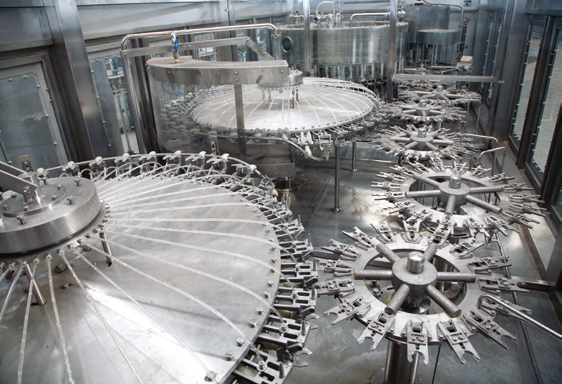

water filling machine
water filling machine
water filling machine
water filling machine
