Glass Bottle Beer Filling Production Line
Glass Bottle Filling Production Line For Beer/Carbonated Drinks
  • Glass Bottle Beer Filling Production Line suitable for carbonated beverage in glass bottles.
  • Output 1,000-21,000 BPH
Contact Us View solutions

Beer/Carbonated Glass Bottle Filling Production Line Details

Washing Part

  • Into bottle way is air conveyor direct connection with Bottle dial
  • All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
  • 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
  • 304/316 stainless steel washing pump make the machine more durable.

Filling Part

  • 304/316 Stainless steel high precision filling nozzle.
  • High speed and precision filling technology, liquid level precision ≤±2mm.
  • All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean.
  • 304/316 stainless steel filling pump.
  • Efficient spray nozzle rinse thoroughly and save water for flushing.
  • Circling liquid tank, the liquid level is controlled by floating ball.

Capping Part

  • Adopted in constant magnetic torque capping technology. capping effect is stable and reliable.
  • All 304/316 stainless steel construction.
  • No bottle no capping.
  • Automatic stop when lack of bottle.
  • High speed and high precision capping technology and ensure capping inferior ≤0.2%.
  • Capping air tightness ≥ 99.99%.

Beer/Carbonated Glass Bottle Filling Production Line Parameter

Modle Capacity Power Dimension Weight
BXGX8-8-3 1000BPH 2.8KW 2000×1500×2200 1900KG
BXGX12-12-5 1500BPH 3.0KW 2200×1650×2200 2400KG
BXGX18-18-6 5000BPH 3.8KW 2550×2000×2200 3600KG
BXGX24-24-8 8000BPH 5.5KW 3050×2250×2300 5200KG
BXGX32-32-10 10000BPH 7.5KW 3720×2800×2300 6000KG
BXGX40-40-12 12000BPH 10.5KW 4200×3300×2300 6700KG
BXGX50-50-12 18000BPH 12.5KW 5000×3800×2300 7400KG
BXGX60-60-15 21000BPH 14.5KW 6000×4200×2300 8100KG

Product Images

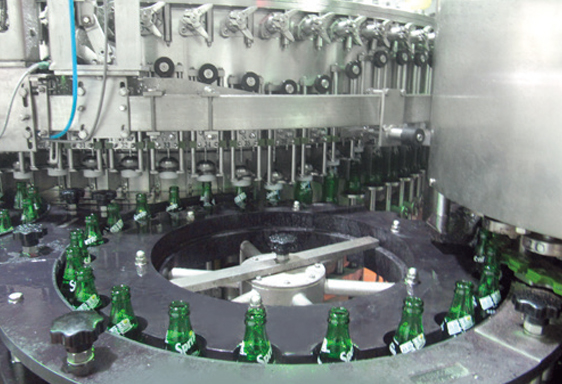

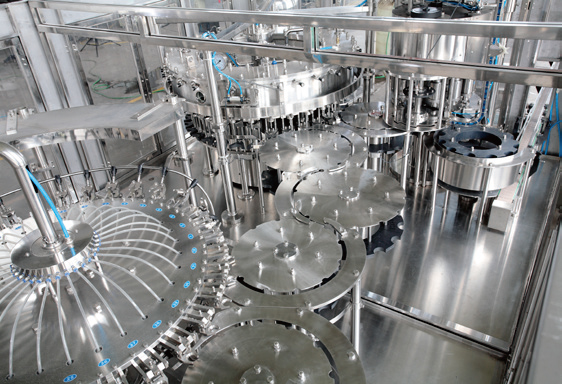

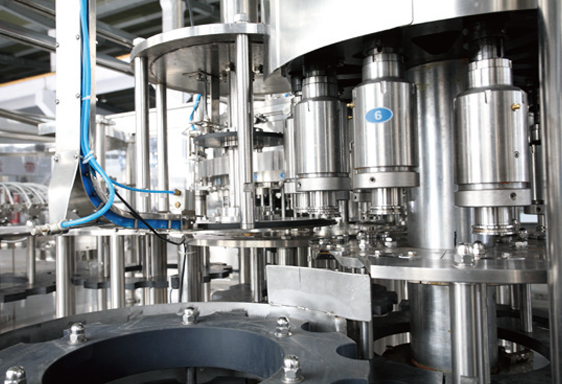

Carbonated filling production line
Carbonated filling production line
Carbonated filling production line
Carbonated filling production line
