3L-20L PET Barrels Blow Molding Machine

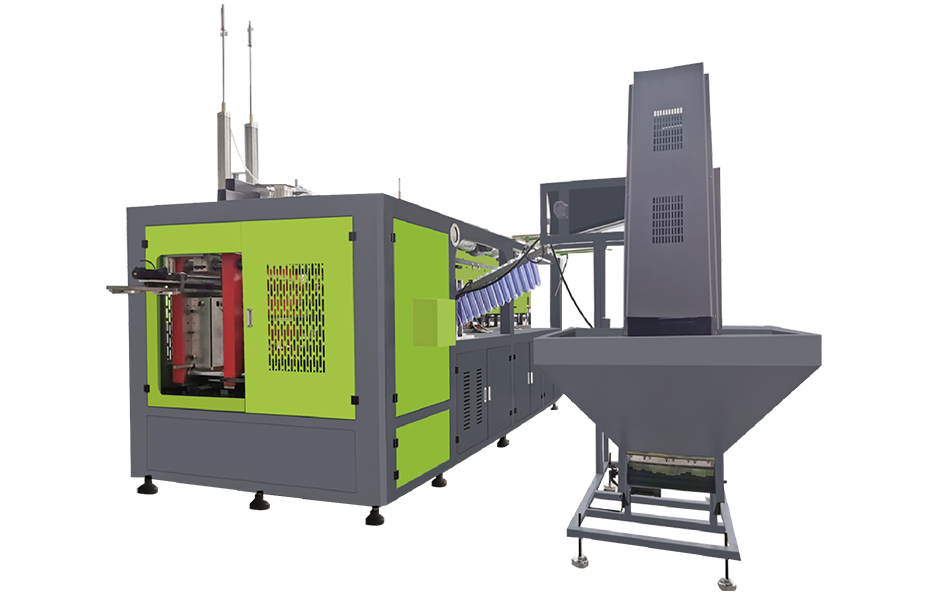

Blow Molding Machine For 3L-20L PET Barrels

It can blow edible oil barrels below 20L, pure buckets, suitable for oilplants and barreled water manufacturers.

TECHNICAL PARAMETERS	UNIT	LGD-1-10L	LGD-2-10L	LGD1-15L	LGD-2-15L	LGD-2-20L
Number of cavity	cavities	1	2	1	2	1
Theoretical Output	pcs/hr	600	1200	500	900	90-300
Max.container volume	L	10	10	15	15	20
Max.neck diameter	mm	45	45	55	55	80
Max.container diameter	mm	220	220	260	260	300
Max, container height	mm	450	450	500	500	550
Mould Thickness	mm	300	300	320	320	360
Mould Stroke	mm	260	260	300	300	320
Stretching Stroke	mm	/	240	/	280	/
Power of Main Blower	kw	30	40	43	55	43
Actual power consumption	kw	20	30	30	38	30
Working Pressure	Mpa	0.8	0.8	0.8	0.8	0.8
Blowing pressure	Mpa	≤3.5	≤3.5	≤3.5	≤3.5	≤3.5
Measurement of Main Blower	mm	420021002300	420021002300	380021002300	530022002300	380021002300
Measurement of Elevator	mm	196014602550	196014602550	1960-1460-2550	196014602550	196014602550
Weight of Main Blower	kg	4000	4500	4500	5500	4800
