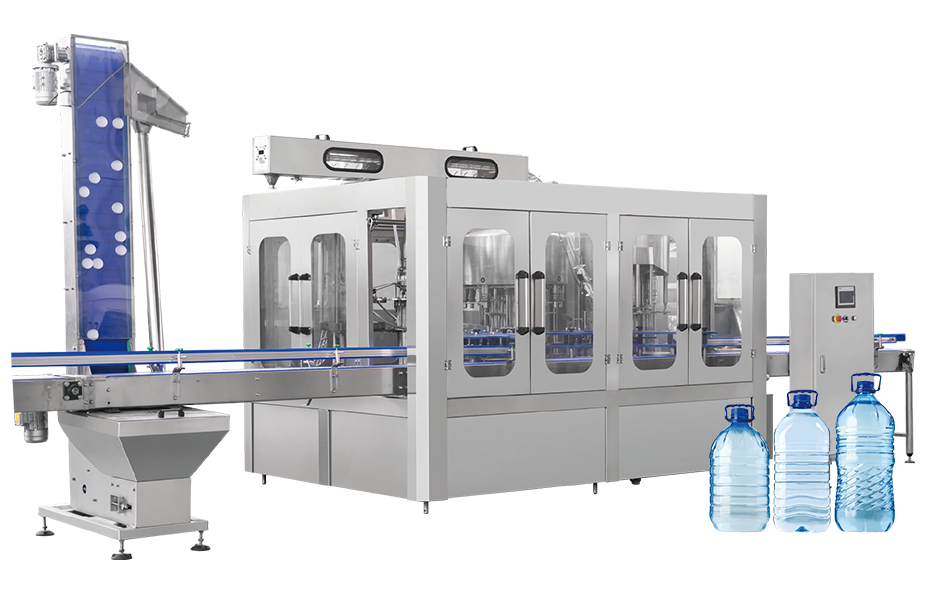

PET Barrels Water Filling Production Line
- PET barrels water filling production line used for the production of 5L, 10L, 15L and other pure water and mineral water.
- Realize rinsing, flling and cappingon one machine.
PET Barrels Water Filling Production Line Details
Washing Part
- Into bottle way is air conveyor direct connection with Bottle dial
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
Filling Part
- 304/316 Stainless steel high precision filling nozzle.
- High speed and precision filling technology, liquid level precision ≤±2mm.
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean.
- 304/316 stainless steel filling pump.
- Efficient spray nozzle rinse thoroughly and save water for flushing.
- Circling liquid tank, the liquid level is controlled by floating ball.

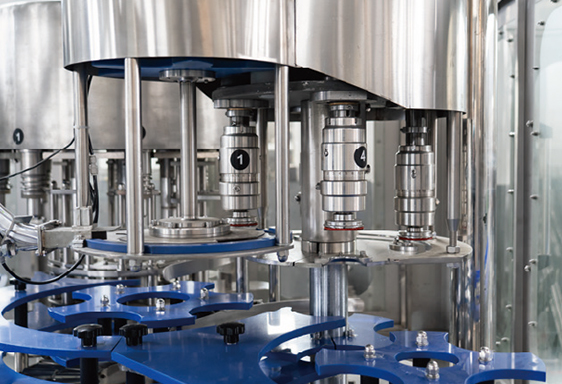

Capping Part
- Adopted in constant magnetic torque capping technology. capping effect is stable and reliable.
- All 304/316 stainless steel construction.
- No bottle no capping.
- Automatic stop when lack of bottle.
- High speed and high precision capping technology and ensure capping inferior ≤0.2%.
- Capping air tightness ≥ 99.99%.
PET Barrels Water Filling Production Line Parameter
| Modle | Capacity | Washing Heads | Filling Heads | Capping Heads | Power | Dimension |
|---|---|---|---|---|---|---|
| LXGF8-8-4 | 800bph 15L | 8 | 8 | 4 | 3.5KW | 3000*2000*2500 |
| LXGF12-12-5 | 1000bph 15L | 12 | 12 | 5 | 3.5KW | 3000*2000*2500 |
| LXGF16-16-6 | 1300bph 15L | 16 | 16 | 6 | 4.0KW | 4100*3200*2500 |
