Glass Bottle Vodka/Whisky Filling Machine
- Glass bottle vodka/whisky filling production line is suitable for vodka, whiskey, liquor,etc in glass bottles.
- Output 2,000-12,000 BPH
Glass Bottle Vodka/Whisky Filling Machine Details

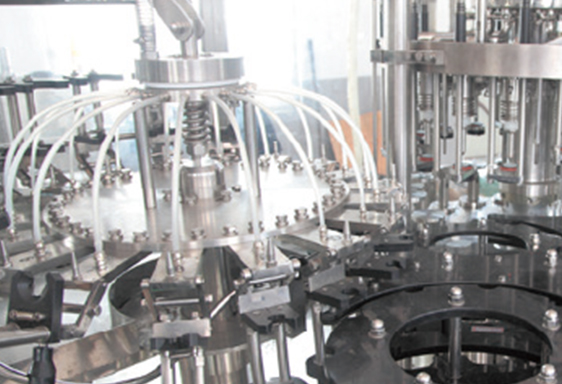

Washing Part
- Into bottle way is air conveyor direct connection with Bottle dial
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.

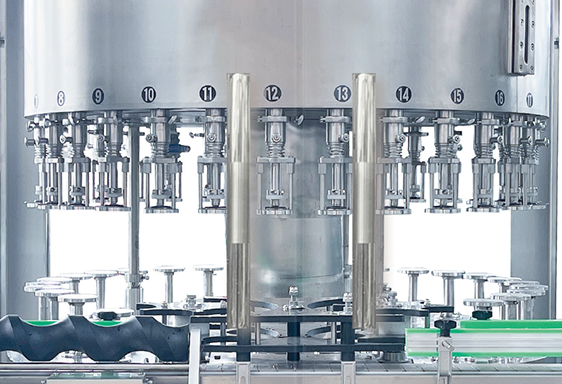

Filling Part
- 304/316 Stainless steel high precision filling nozzle.
- High speed and precision filling technology, liquid level precision ≤±2mm.
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean.
- 304/316 stainless steel filling pump.
- Efficient spray nozzle rinse thoroughly and save water for flushing.
- Circling liquid tank, the liquid level is controlled by floating ball.
Capping Part
- Adopted in constant magnetic torque capping technology. capping effect is stable and reliable.
- All 304/316 stainless steel construction.
- No bottle no capping.
- Automatic stop when lack of bottle.
- High speed and high precision capping technology and ensure capping inferior ≤0.2%.
- Capping air tightness ≥ 99.99%.
Glass Bottle Vodka/Whisky Filling Machine Parameter
| Model | Capacity(b/h) | Washing part | Filling part | Capping part | Power(kw) | Dimension(mm) | |||
|---|---|---|---|---|---|---|---|---|---|
| Water consumption | Heads | Model | Heads | Model | Heads | ||||
| QGX16-16-1 | 2000 | 1.8 | 16 | Low vacuum filing | 16 | Capping | 1 | 5.2 | 3250x1500x2450 |
| QGX24-24-4 | 5000 | 2 | 24 | 24 | Corking | 4 | 6.2 | 4000x1750x2450 | |
| QGX24-24-8 | 6000 | 2 | 24 | 24 | Capping | 8 | 7.5 | 3600x2200x2450 | |
| QGX40-40-12 | 12000 | 3.6 | 40 | 40 | Capping | 12 | 7.5 | 4900x2550x2450 | |
